| PTFE MOULDED >> Bottle |
| |
| |
 |
| |

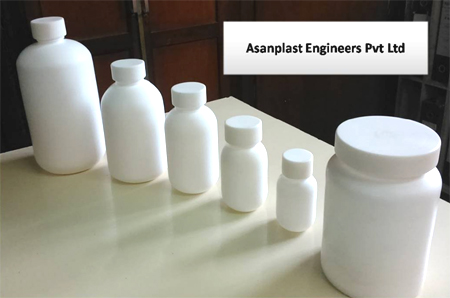

| PTFE is an excellent material for bottles storing API's, bulk intermediates and critical reagents. PTFE has a wide temperature resistance range, coupled with its ability to withstand rigorous cleaning procedures (viz those which require boiling nitric acid ) make bottles made of PTFE ideal for storage of material with high value. |
| |
PTFE bottles are generally used for the following
1) Storage of high purity chemicals.
2) Trace analysis - Analysis of metal elements in a media by AA or ICP-MS.
3) Quality assurance purpose - By Quality Assurance dept. to analyze sample of chemicals.
4) Use for strong acid/alkali or PURE Water .
5) For hydrofluoric acid (HF) - glass can not be used for HF, so PTFE bottles are used .
Custom sized bottles available with wide or narrow neck as required. All bottles have a leak proof cap.
Our standard sizes ( 50ml to 2000ml) with their dimensions given below |
| |
| |
Sr No |
Size
ml |
Height mm |
Outer Dia mm |
Mouth Inner Dia mm |
1 |
50 |
75 |
53 |
28 |
2 |
100 |
98 |
53 |
28 |
3 |
250 |
122 |
68 |
38 |
4 |
500 |
155 |
82 |
38 |
5 |
1000 |
185 |
105 |
46 |
6 |
2000 |
240 |
125 |
56 |
|
| |
| |
| |
|
