PTFE MOULDED >> Bottle



PTFE is an excellent material for bottles storing API's, bulk intermediates and critical reagents. PTFE has a wide temperature resistance range, coupled with its ability to withstand rigorous cleaning procedures (viz those which require boiling nitric acid ) make bottles made of PTFE ideal for storage of material with high value.

PTFE bottles are generally used for the following

1) Storage of high purity chemicals.

2) Trace analysis - Analysis of metal elements in a media by AA or ICP-MS.

3) Quality assurance purpose - By Quality Assurance dept. to analyze sample of chemicals.

4) Use for strong acid/alkali or PURE Water .

5) For hydrofluoric acid (HF) - glass can not be used for HF, so PTFE bottles are used .
Custom sized bottles available with wide or narrow neck as required. All bottles have a leak proof cap.

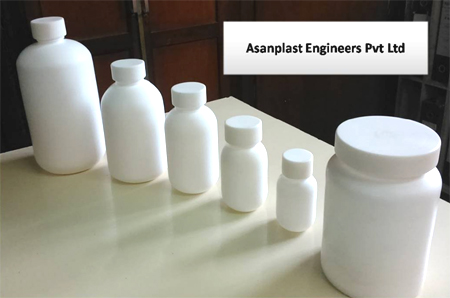

Our standard sizes ( 50ml to 2000ml) with their dimensions given below


Sr No
Size ml
Height  mm
Outer Dia  mm
Mouth Inner Dia mm
1
50
75
53
28
2
100
98
53
28
3
250
122
68
38
4
500
155
82
38
5
1000
185
105
46
6
2000
240
125
56
